VIY Software Package ver. 3.12.3.20

VIY software package allows user to set up all features of VIY GPR, to control the measurement, to upload data to the computer, to save data, and to process and print all measured data.

VIY Software Package ver. 3.12.3.20

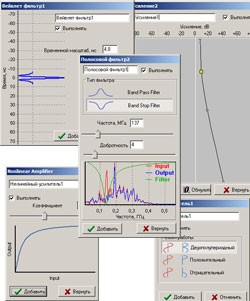

Software for VIY3 GPR



Booklets

PDF VIY5-900 English

PDF VIY5-600 English

PDF VIY5-600 Spanish

PDF VIY5-37 English

PDF VIY5-37 Spanish

PDF VIY5-300 English

PDF VIY5-300 Spanish

PDF VIY5-125 English

PDF VIY5-125 Spanish

User Manual for Synchro3 Program

Synchro3 is the main program for GPR control and post-processing of collected GPR data.
Synchro3 may work independently or together with Planner program.

User Manual for Synchro3 Program

User Manual for Synchro3 Program (Spanish Version)

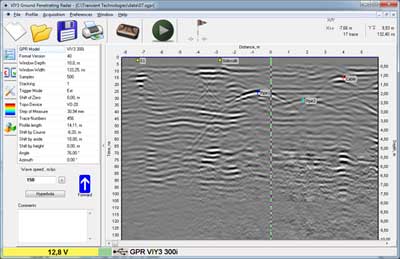

Synchro3_main_window



User Manual for Planner Program

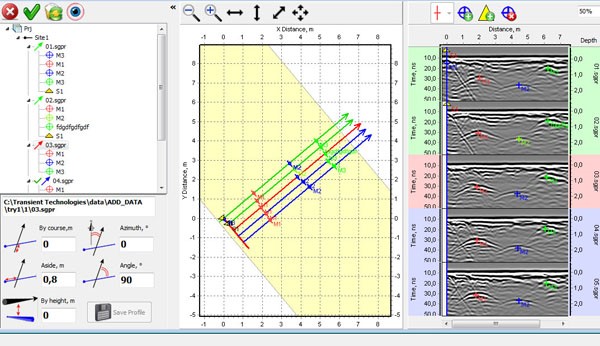

Planner program was developed to work together with Synchro program as a useful tool for GPR profiles representation on a location's plan, to build 3D View of GPR data, and to create reports.

User Manual for Planner program

User Manual for Planner program (Spanish Version)



Planner software for VIY3 GPR



Examples of projects for Planner program

Below you can find some examples of Planner projects.
The projects include GPR data, reports and 3D data representations.

1) Kiyv Pechersk Lavra

GPR data were collected after an investigation, that had place on the territory of Kiev Pechersk Lavra (Kiev, Ukraine).



example of Planner program project

We made an examination of underground passages and communication lines network that go through the monastery's garden (the place is marked on the map by red arrow).

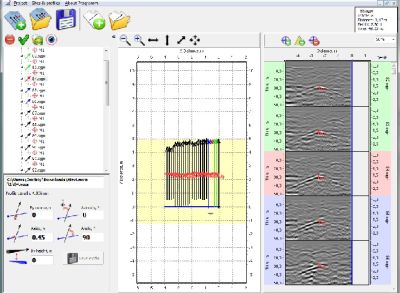

In this example you can find the set of 26 GPR profiles for Planner program. The location of the underground pipe lying on 1.5 m depth is marked on the plan by markers.

example of Planner project in Kiev Lavra

You can open every single profile in Synchro software for more detailed examination and additional processing. This is possible to do directly from Planner.

You can also find reports of Planner software (top view) and 3D report in the archive folder.

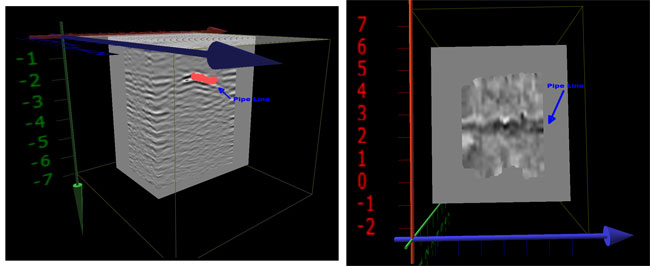

3D view of GPR data

2) Search for remains of a water pipeline

Location: Santiago, Chile.
There was led a research for remains of a water pipeline before telecommunication cable installation.

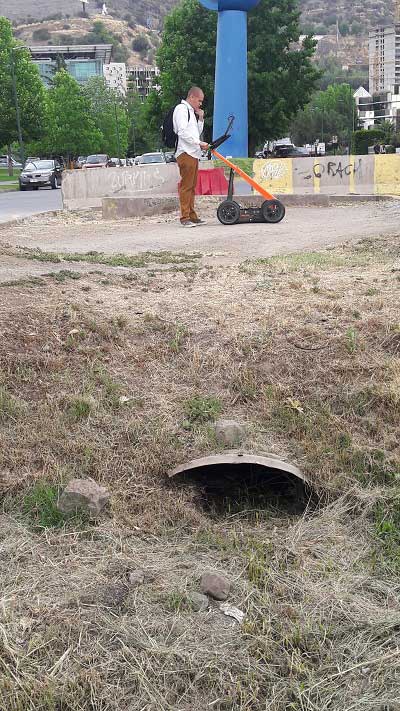

example of VIY3 GPR project in Santiago


As a result the pipeline was found on a depth of 0.6m

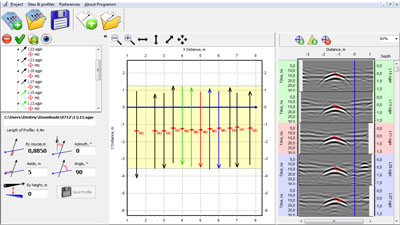

Planner project of VIY3 GPR in Santiago

As you can see in this example, the amplitude of the pipeline reflection is getting faint since 23th profile.
That might be concerned with changing of soil content on a shallow depth. In this area the soil was contaminated with garbage containing different small metallic parts. That could lead to screening in this zone.



examples of Planner's GPR profiles

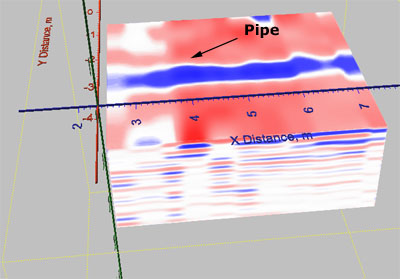

Also you can see 3D representation of GPR sounding results.


 3D view of VIY3 GPR project in Santiago



Examples of the other profiles for Synchro software



VIY3 GPR profile of sand pit

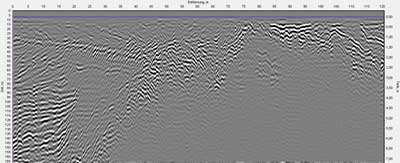

This is an example of GPR survey that was led on a sand-pit.
In an archive folder you can find profile files and two pictures: original screenshot of the profile and a screenshot of a profile after Topographic correction applied.





search for utilities with VIY3 GPR

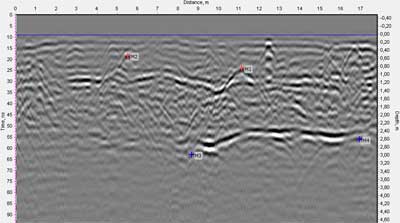

The goal of the sounding on this location was meant to find buried utilities. You can see them marked by markers on the profile. Also you can see fire-reservoir buried on a depth of 2,5 m.



search for utilities with VIY3 ground penetrating radar

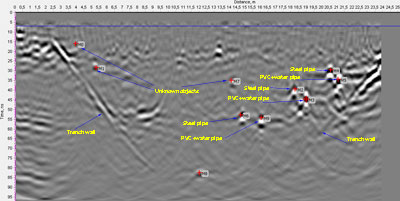

On this profile you can see several objects that are located in a wide trench.

The left border of the trench is seen as a slant line going from 3rd to 12th meter of the profile.
The right border of the trench can be traced from 16th meters until the end of the profile.
Local objects in the form of diffraction hyperbolas are marked with red markers. Brightness of hyperbolas depends on the differences in dielectric properties of the objects and the medium. Objects are discernible up to 4 meters depth (with the wave speed 107 meters per microsecond).

Below you can see the same profile with Migration applied:

Migration tool for VIY3 GPR profile
