Synchro Program

VIY3 software package allows to make all the settings of VIY3 GPR, to control of the measurement process, upload into a computer and store all GPR data in it, process and print the measured data. Also there is a possibility to import data from the VIY2 GPR.

Main features of Synchro3 program:

  • User-friendly multiple-windows interface

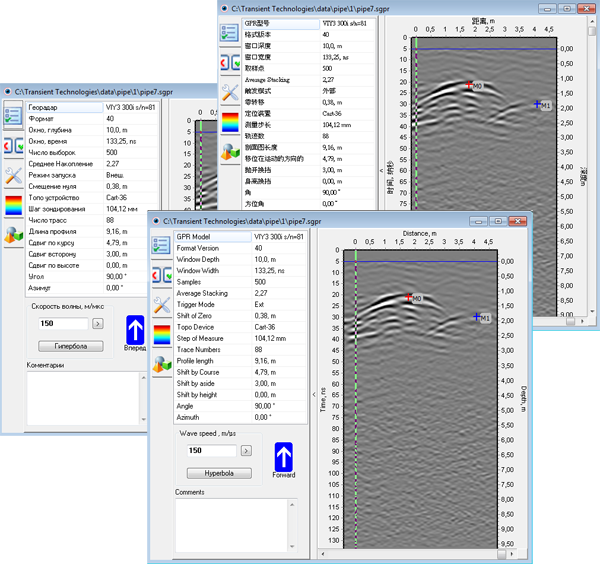

  • Available language interfaces - English, Russian, Polish, Chinese, Spanish, Turkish and German

Synchro software for VIY3 ground penetrating radar



  • GPS can be optionally used together with GPR

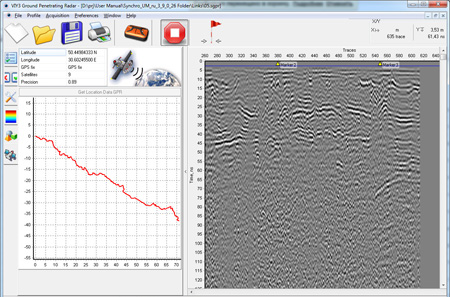

Example of Synchro program using GPS



  • Full support of languages with 2-bit coding
  • Results of measurement can be displayed as a separate trace (A-scan) or GPR profile (B-scan)

Synchro software for VIY3 ground penetrating radar_B-scan

  • Automatic recognition of connected antenna

Synchro software for VIY3 ground penetrating radar

  • Display status of a built-in antenna battery

Synchro software for VIY3 ground penetrating radar

  • All antennas are equipped with built-in inclinometers

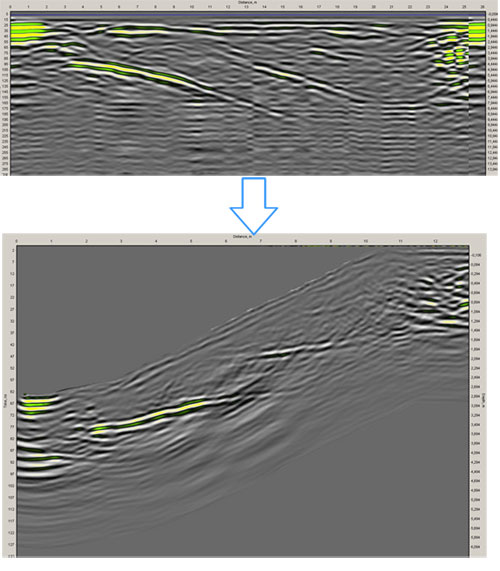

  • Automatic topographic correction

Synchro software for VIY3 ground penetrating radar

  • Safe way to store the GPR data
  • Original GPR data are kept unchangeable during data processing
  • Export GPR profiles data to BMP, text and SEG-Y
  • 'Hyperbola' tool  for adjustment of the wave speed in the medium

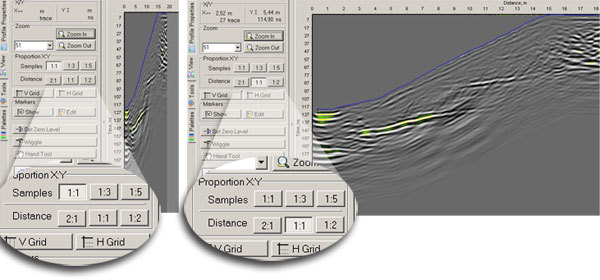

  • Handy scaling with interpolation

Synchro software for VIY3 ground penetrating radar

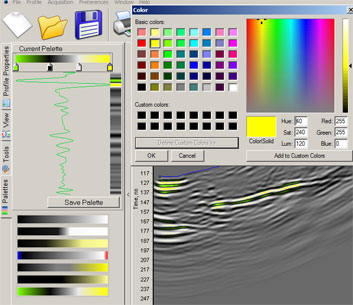

  • Very flexible GPR profile graphic palette adjustment

Synchro software for VIY3 ground penetrating radar

  • Convenient editable palette library

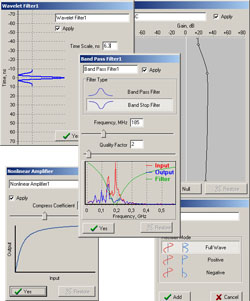

  • Wide range of tools for post-processing
  • Interactive displaying of the tool application results on the profile
  • User-friendly interface for tools usage

Synchro software for VIY3 ground penetrating radar

Please download the last version of VIY3 software package (ver.3.9.1.27) here
