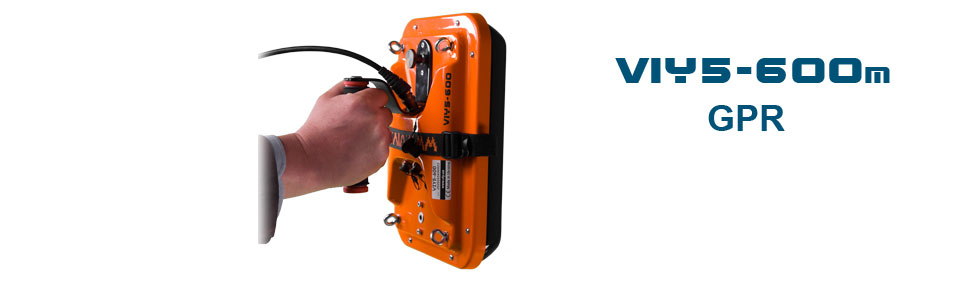

VIY5-600 Ground Penetrating Radar

VIY5-600 Ground Penetrating Radar VIY5-600 Ground Penetrating Radar VIY5-600 Ground Penetrating Radar with cart VIY5-600 Ground Penetrating Radar
VIY5-600 Ground Penetrating Radar
Description
Specification
Components

The VIY5-600 Ground Penetrating Radar (GPR) can be used for location and analysis of underground objects using electromagnetic pulse radiation, up to 3,5 meters depth.
The VIY5-600 GPR is suitable for searching of both metallic and dielectric objects (utilities, voids, fondation constructions, etc.).



Basic applications:

  • Utilities;
  • Examination of engineering construction (building walls and fondations, etc);
  • Search for reinforcement rods in building constructions;
  • Search for hidden and immured objects.


Features:

  • Real time signal pre-processing (Online filtering)
  • Auto-calibrated online filters
  • Wide range of post processing tools
  • Increased dynamic range due to digital traces-stacking
  • Innovative Telbin technology to get high signal-to-noise ratio
  • Connection to laptop: Wi-Fi or USB
  • Direct connection of Measuring wheel and GPS to antenna
  • No additional Control Unit. Any Windows-based laptop can be used for working
  • Antenna mounting: on Handcart Cart-46 or antenna+odometer
  • New handcart design: fast and easy system deployment
  • Handcart laptop shelf angle: any convenient
  • Antenna case: IP65 compliant
  • New IP67 Swiss-made connectors
  • Sealed Lead Acid Battery
  • Low power consumption: > 8 hours of working on a single charge



  • Antenna frequencies: 600MHz
  • Analogue-to-Digital Converter range: 18 bit
  • Dynamic range: not less than 135 dB
  • Data acquisition rate: up to 80 traces per second
  • Survey window: 34, 51, 68, 85 nsec
  • Maximum number of samples per trace: 1 000
  • Trace stacking number: up to 300
  • Depth of sounding: up to 3.5 m (determined by soil properties)
  • Spatial resolution: <0.14 m
  • Trigger mode: single, internal, external
  • File size of a single profile: up to 1 000 000 traces
  • Interface: USB2 or Wi-Fi
  • Built-in inclinometer
  • Dimensions (L x W x H): 290x200x100 mm
  • Weight: 14.5 kg (with Cart)
  • Operating temperature range: -20C to 40C
  • Environmental rating: IP65
  • Continuous operation time: not less than 8 hours

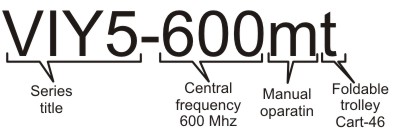

The VIY5-600 GPR set includes:

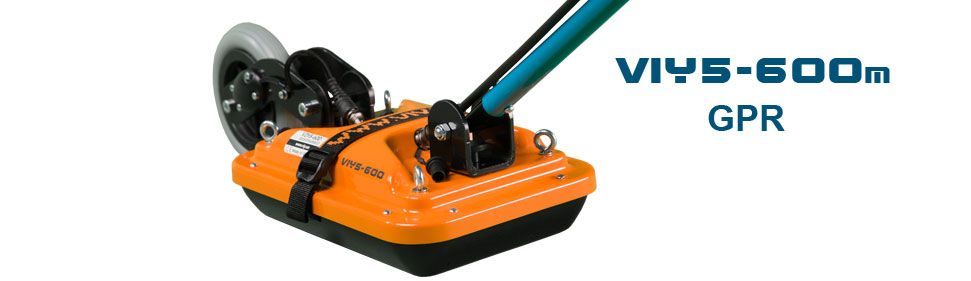

Antenna unit of VIY5-600 ground penetrating radarAntenna unit
Antenna unit is placed in a durable fiberglass housing.
The antenna unit has sockets to connect:

  • Data cable
  • Measuring wheel and/or GPS receiver

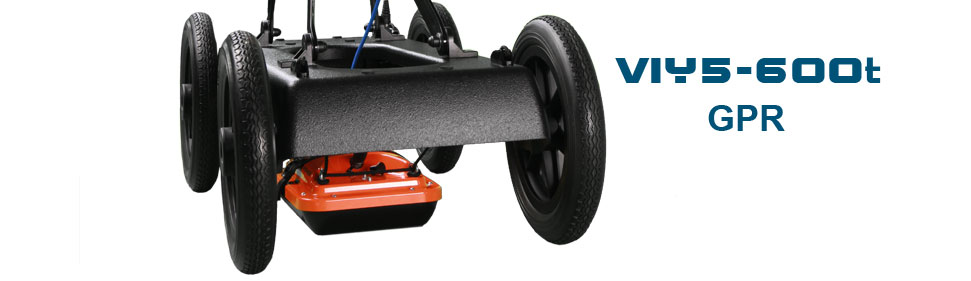

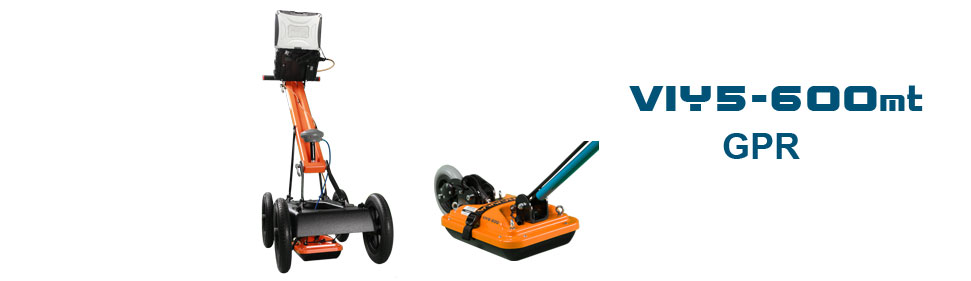

Foldable handcart Cart-46 for transportation of VIY5-37 ground penetrating radarHandcart Cart-46
Foldable handcart allows a single operator to carry out fast and easy survey of large areas.
Main features:

  • Durable and reliable construction
  • Quick deployment
  • 12 inch wheels
  • Weight - 12.7 kg (with battery installed)
  • Built-in odometer
  • Built-in battery
  • Very compact when folded



Battery CaseBattery case for the battery of VIY3-500 ground penetrating radar
Battery case can be placed in operator's backpack while working without handcart.
The battery case has sockets to connect DP and Data cables.





VO-22 Measuring wheel of VIY5-600 ground penetrating radarVO-22 Measuring Wheel
VO-22 is a bidirectional odometer (measuring wheel) that measures traveled distance in both directions. Odometer can be mounted to the body of antenna unit and electrically connected to the antenna by special connector.

  • Calibration is not required;
  • Dust and mud protection;
  • Mounting to an antenna unit without any extra tool;

Battery charger for VIY3-300 ground penetrating radarBattery Charger
Reliable, sealed charger for charging a built-in battery.







Data cable to connect VIY3-300 antenna unit and laptopData Cable
The cable that connects antenna unit to USB port of your computer







Transportation handle for VIY5-37 antenna unit

GPR Pole

The pole for transportation of antenna forward and backward. Can be easyly mounten to antenna.








User's Manual

English version of User manual for VIY3 series of ground penetrating radars












Backpack Backpack for accessories of VIY3-300 ground penetrating radar
Durable and comfortable backpack for transportation of all accessories for GPR. It has many compartments, including protected compartment for laptop.














portable shelf for laptop for VIY3-300 ground penetrating radar operator's

Portable shelf for notebook

Foldable shelf was designed to be attached to the backpack and to let a single operator carry out comfortable work with a laptop.







GPS (optionally)GPS receiver for VIY5 Ground Penetrating Radar
GPS receiver can be installed onto Cart-46 handcart and connected directly to VIY5-600, VIY5-300 or VIY5-37 antenna.










Transportation Box (optionally)Transportation case for VIY5 GPR
A special case that was made for transportation of
VIY5-300, VIY5-600 or VIY5-37 GPR together with handcart.
