VIY3-700 Ground Penetrating Radar

Description
Specification
Components

The VIY3-700 Ground Penetrating Radar (GPR) can be used for location and analysis of underground objects using electromagnetic pulse radiation up to 2.5 meters depth (or thickness). The VIY3-700 GPR is suitable for searching of both metallic and dielectric objects (pipes, communications, voids, building constructions, etc).



Basic applications:

  • Search for pipes and communication objects;
  • Examination of engineering construction (building walls and basements, etc);
  • Search for reinforcement rods in building constructions;
  • Search for hidden and immured objects.


Features:

  • Real time signal pre-processing (Online filtering)
  • Automatic-Calibrated online filters
  • Wide range of post processing filters
  • Increased dynamic range due to digital traces-stacking
  • High signal-to-noise ration due to innovative Telbin technology
  • Automatic recognition of connected antenna
  • Antenna to laptop connection through WiFi or USB
  • All GPR components (antennas system, electronic modules, battery, etc.) are assembled in a single case
  • No additional Control Unit. Any Windows-based computer (laptop) can be use to work with VIY3 GPR
  • Direct connecting of Measuring wheel and GPS to antenna unit
  • Antenna unit can be mounted on the Handcart Cart-36, can be pulled along the ground by transport belt, or manually along surface
  • Bidirectional odometer. User can perform sounding in both directions: back and forth
  • Low power consumption: not less than 8 hours of working session before next charging
  • Sealed lead acid batteries permitted for air-carrying
  • Non- inflatable solid wheels of the Handcart
  • Durable antenna body from fiberglass plastic
  • Replaceable bottom protector to use antenna without the Handcart
  • Each antenna set is ready to use without purchasing any additional accessories
  • Antenna frequency: 700 MHz
  • Analogue-to-Digital Converter range: 18 bit
  • Dynamic range: not less than 135 dB
  • Data acquisition rate: up to 55 traces per second
  • Survey window: 16, 24, 32, 40 ns
  • Maximum number of samples per trace: 1 000
  • Trace stacking number: up to 300
  • Depth of sounding: up to 2.5 m (determined by soil properties)
  • Spatial resolution: better than 0.12 m
  • Trigger mode: single, internal, external
  • File size of the profile: up to 1 000 000 traces
  • Interface: USB2 or WiFi
  • Build-in inclinometer
  • Dimensions (L x W x H): 325x 210x 156 mm
  • Weight: 2.5 kg
  • Operating temperature range: -20C to 40C
  • Continuous operation time: not less than 8 hours

The VIY3-700 GPR set includes:

Antenna unit (standard)Antenna unit of VIY3-700 ground penetrating radar

Antenna unit with 700 MHz frequency is placed in a durable fiberglass housing. The unit has DP connectors to be connected to USB cable, for measuring wheel and/or GPS receiver.

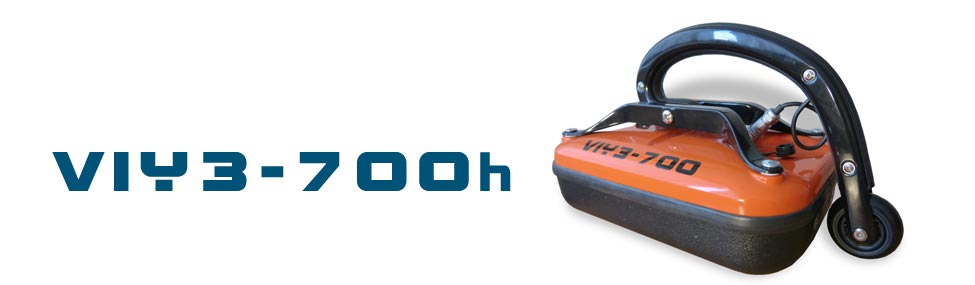

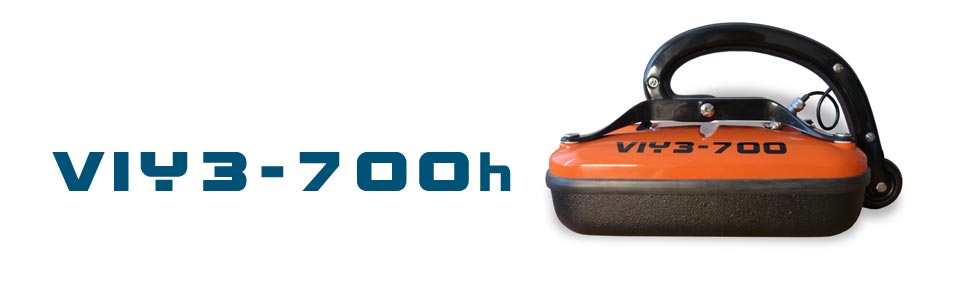

Antenna unit (handheld version VIY3-700h)handheld version of VIY3-700 ground penetrating radar

Antenna unit with 700 MHz frequency is placed in a durable fiberglass housing. The unit has DP connectors to be connected to USB cable, for measuring wheel and/or GPS receiver.
This antenna unit version has a special flexible handle and small wheel. Very useful for wall and floor sounding.




Battery BoxBattery case for the battery of VIY3-700 ground penetrating radar

Battery box is placed in backpack or mounted in the Cart-36 handcart.
The box has connectors to connect DP and Data cables.






Handcart Cart-36Foldable handcart Cart-36 for transportation of VIY3-700 ground penetrating radar

Foldable handcart allows a single operator to carry out a quick examination of large areas. The measurements with Cart-36 GPR can be easier and faster.
The cart has durable and reliable construction, universal mounting for laptop, 12 inch wheels, built-in odometer.
Cart-36 has a minimum size in the folded state.



VO-20 Measuring Wheel (not included in VIY3-700h version)VO-20 Measuring wheel of VIY3-700 ground penetrating radar

Measuring wheel (odometer) VO-20 was designed to determine passed distance during a GPR profile acquisition.
Odometer can be mounted to the body of antenna unit and electrically connected to the antenna by special connector.

  • Calibration is not required;
  • Dust and mud protection;
  • Mounting to the antenna unit without any extra tools;
  • Compatible with all types of antenna units.

Battery ChargerBattery charger for VIY3-700 ground penetrating radar

Reliable, sealed charger for charging biult-in battery.







DP Cablecable to connect antenna unit of VIY3-700 ground penetrating radar to battery case

The cable to connect antenna unit to battery case.






Data Cablecable to connect battery case of VIY3-700 ground penetrating radar to laptop

The cable to connect battery case to USB port of your computer.





Transport BeltTransportation towing belt for VIY3-700 antenna unit







User's ManualEnglish version of User manual for VIY3 series ground penetrating radar









BackpackBackpack for accessories of VIY3-700 ground penetrating radar

Durable and comfortable backpack for transportation of all components, except the antenna unit. It has many sections, including protected one for laptop.








Portable shelf for laptopportable shelf for laptop for VIY3-500 ground penetrating radar operator's

Foldable shelf was designed to be attached to the backpack and to let the operator carry out a comfortable work with a laptop.






The VIY3-700 GPR is supplied with different options.

Order information for standard version:

example of order information for VIY3 series ground penetrating radars

 Order information for handheld version:

example of order information for VIY3-700h ground penetrating radar
