GPR can be applied in ice and snow structure examinations, the measurement of their thickness and find cavities inside them.


One interesting example: our GPR was used by scientists while ice structure examination in Antarctica. They successfully mapped ice layers, measured the thickness of ice, and found heterogeneities in it.

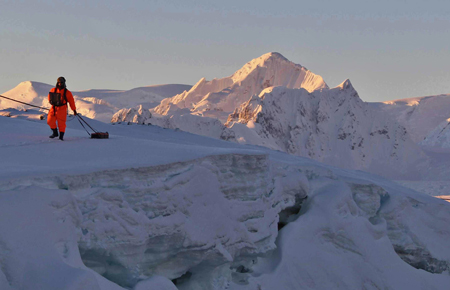

VIY3 ground penetrating radar in Antarctica

using VIY3 ground penetrating radar in Antarctica

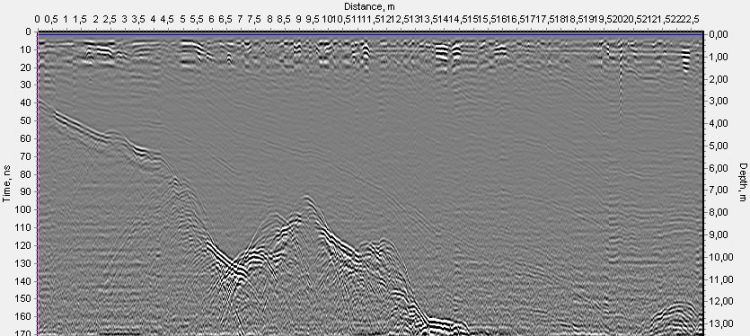

GPR profile of ice in Antarctica using VIY3 ground penetrating radar



Another possible application of GPR is a snow structure assessment in mountains. The upper layer can have different thickness, below that can be both ice and crumbly snow. Such a structure can be quite dangerous for people. GPR can pinpoint potential dangerous areas of snow avalanche descending.

On these dangerous zones GPR can be used contactless (make sounding above the surface of ice and snow).

Please see below the example of the profile of snow cover.

VIY3 GPR profile of snow cover
