VIY3-300 Ground Penetrating Radar

300 terra for slider 7 300 terra for slider 1 300 terra  for slider 2 300 terra 6 300 terra for slider 4 300 terra for slider 3 300 terra for slider 5
300 terra 6
Description
Specification
Components

Dear Colleagues! Transient Technologies has developed and mass-produced a new generation of GPR - VIY5. VIY5 GPR replaced the VIY3 series.

Instead of VIY3-300, now order VIY5-300

Ground penetrating radars VIY3 discontinued. Technical support and the supply of components for the VIY3 series do not stop.

The VIY3-300 Ground Penetrating Radar (GPR) is used for location and analysis of the nature of underground objects using electromagnetic pulse radiation, up to 8 meters depth.
The VIY3-300 GPR is suitable for searching of both metal and dielectric objects (geological structures, pipes, voids, building constructions etc.).

Basic applications:

  • Search for pipes and communication objects;
  • Examination of engineering construction (building basement, dams, etc.);
  • Investigation of man-caused accident areas;
  • Search for subsurface objects (voids, cracks, heterogeneous inclusions);
  • Search for underground constructions (tunnels, sewers and etc.);
  • Search for sources of leakage from pipelines by indirect signs (excessive moisture).

Features:

  • Real time signal pre-processing (Online filtering)
  • Automatic-Calibrated online filters
  • Wide range of post processing filters
  • Increased dynamic range due to digital traces-stacking
  • High signal-to-noise ration due to innovative Telbin technology
  • Automatic recognition of connected antenna
  • Antenna to laptop connection through WiFi or USB
  • All GPR components (antennas system, electronic modules, battery, etc.) are assembled in a single case
  • No additional Control Unit. Any Windows-based computer (laptop) can be used for working
  • Direct connecting of Measuring wheel and GPS to antenna unit
  • Antenna unit can be either mounted on the Handcart Cart-36 or towed along the ground by transport belt
  • Bidirectional odometer. User can perform sounding in both directions: back and forth
  • Low power consumption: not less than 8 hours of working session before next charging
  • Sealed lead acid batteries permitted for air-carrying
  • Non- inflatable solid wheels of the Handcart
  • Durable antenna body made of fiberglass plastic
  • Replaceable bottom protector to use antenna without the Handcart
  • Each antenna set is ready to use without purchasing any additional accessories

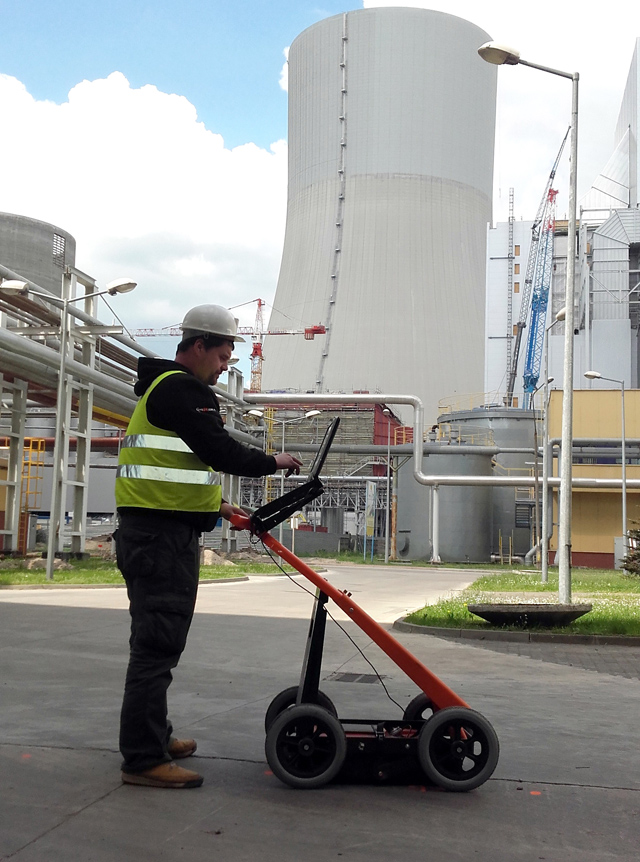

example of application of VIY3-300 GPR

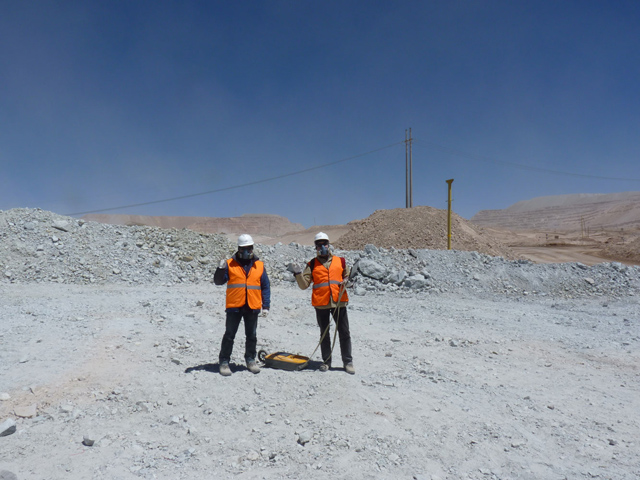

example of application of VIY3-300 GPR

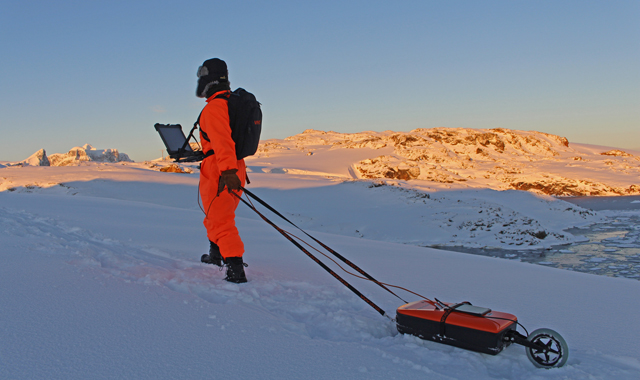

example of application of VIY3-300 Ground Penetrating radar

  • Antenna frequency: 300 MHz
  • Analogue-to-Digital Converter range: 18 bit
  • Dynamic range: not less than 135 dB
  • Data acquisition rate: up to 55 traces per second
  • Survey window: 66, 100, 133, 166 ns
  • Maximum number of samples per trace: 1 000
  • Trace stacking number: up to 300
  • Depth of sounding: up to 8 m (determined by soil properties)
  • Spatial resolution: better than 0.3 m
  • Trigger mode: single, internal, external
  • File size of a single profile: up to 1 000 000 traces
  • Interface: USB2 or WiFi
  • Dimensions (L x W x H): 610x312x170 mm
  • Weight: 9.0 kg
  • Operating temperature range: -20°C to 40°C
  • Continuous operation time: not less than 8 hours

The VIY3-300 GPR set includes:

Antenna unit of VIY3-300 ground penetrating radarAntenna unit
Antenna unit is placed in a durable fiberglass housing.
The antenna unit has sockets to connect:

  • Data cable
  • Masuring wheel and/or GPS receiver





Foldable handcart Cart-36 for transportation of VIY3-300 ground penetrating radarHandcart Cart-36
Foldable handcart allows a single operator to carry out fast and easy survey of large areas.
Main features:

  • Durable and reliable construction
  • Universal mounting for laptop
  • 12 inch wheels
  • Built-in odometer
  • Very compact when folded



VO-20 Measuring wheel of VIY3-300 ground penetrating radarVO-20 Measuring Wheel
Measuring wheel (odometer) VO-20 was designed to determine passed distance during a GPR profile acquisition. Odometer can be mounted to the body of antenna unit and electrically connected to the antenna by special connector.

  • Calibration is not required;
  • Dust and mud protection;
  • Mounting to an antenna unit without any extra tool;
  • Compatible with all types of antenna units.

Battery charger for VIY3-300 ground penetrating radarBattery Charger
Reliable, sealed charger for charging a biult-in battery.







Data cable to connect VIY3-300 antenna unit and laptopData Cable
The cable that connects antenna unit to USB port of your computer







Transportation towing belt for VIY3-300 antenna unit

Transport Belt






English version of User manual for VIY3 series of ground penetrating radars

User's Manual








Backpack for accessories of VIY3-300 ground penetrating radarBackpack
Durable and comfortable backpack for transportation of all accessories for GPR. It has many compartments, including protected compartment for laptop.








portable shelf for laptop for VIY3-300 ground penetrating radar operator's



Portable shelf for notebook
Foldable shelf was designed to be attached to the backpack and to let a single operator carry out comfortable work with a laptop.





 The VIY3-300 GPR is supplied with different options.

Order information:

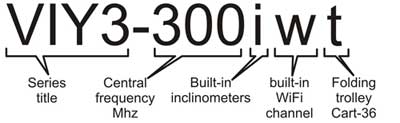

 example of order information for VIY3 series ground penetrating radars
