VIY5-1500 Ground Penetrating Radar

VIY5-11500 GPR 5 VIY5-11500 GPR 1 VIY5-11500 GPR 4 VIY5-11500 GPR 2 VIY5-11500 GPR 3
VIY5-11500 GPR 2
Description
Specification
Components

The VIY5-1500 GPR is suitable for concrete structure inspection and searching of both metallic and dielectric objects (cracks, voids, rebars, etc.).



Basic applications:

  • Concrete and brick structure inspection;
  • Cable and pipes detection
  • Examination of engineering construction (building walls and fondations, etc);
  • Search for reinforcement rods in building constructions;
  • Search for hidden and immured objects.


Features:

  • Real time signal pre-processing (Online filtering)
  • Auto-calibrated online filters
  • Wide range of post processing tools
  • Increased dynamic range due to digital traces-stacking
  • Innovative Telbin technology to get high signal-to-noise ratio
  • Connection to laptop: USB
  • No additional Control Unit. Any Windows-based laptop can be used for working
  • Antenna case: IP65 compliant
  • Not need battary, powered from computer's USB  port
  • Low power consumption




GPR
profile wall_20.brm
The GPR profile recorded during this video can be downloaded from the link.



GPR
profile wall_20.brm
The GPR profile recorded during this video can be downloaded from the link.

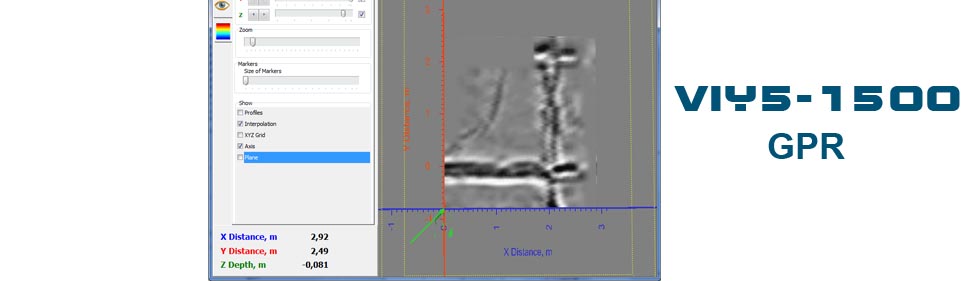

To work with georadar and georadar data, download the free VIY software package.


  • Antenna frequencies: 1500MHz
  • Analogue-to-Digital Converter range: 18 bit
  • Dynamic range: not less than 135 dB
  • Data acquisition rate: up to 150 traces per second
  • Survey window: 8, 12, 16, 20 nsec
  • Maximum number of samples per trace: 1 000
  • Trace stacking number: up to 300
  • Depth of sounding: up to 0,5 m (determined by soil properties)
  • Spatial resolution: <0.03 m
  • Trigger mode: single, internal, external
  • File size of a single profile: up to 1 000 000 traces
  • Interface: USB2
  • Built-in inclinometer
  • Dimensions (L x W x H): 190x40x40 mm
  • Weight of antenna 0,6 kg
  • Operating temperature range: -20°C to 40°C
  • Environmental rating: IP65
  • Continuous operation timt: until the laptop runs out

The VIY5-1500 GPR set includes:

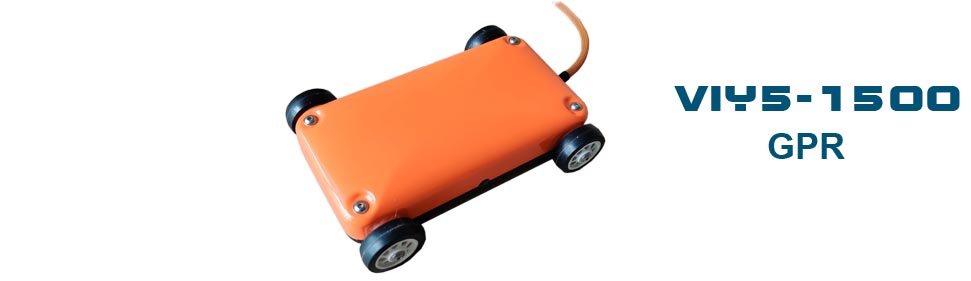

Antenna VIY5-1500 ground penetrating radarAntenna unit
Antenna unit is placed in a durable fiberglass housing.
The antenna unit has:

  • Built-in data cable
  • Built-in measuring wheel







Odometers of VIY5-1500Measuring Wheel
All wheels of VIY5-1500 are measuring wheels.







Transportation handle for VIY5-37 antenna unit

GPR Pole

The pole for transportation of antenna forward and backward. Can be easyly mounten to antenna.






User's Manual

English version of User manual for VIY3 series of ground penetrating radars










Backpack for VIY5 series GPRBackpack
Durable and comfortable backpack for transportation of all accessories for GPR. It has many compartments, including protected compartment for laptop.












portable shelf for laptop for VIY3-300 ground penetrating radar operator's

Portable shelf for notebook

Foldable shelf was designed to be attached to the backpack and to let a single operator carry out comfortable work with a laptop.
