VIY5-300 Ground Penetrating Radar

VIY5-300 Ground Penetrating Radar Cart-46 VIY5-300 Ground Penetrating Radar VIY5-300 Ground Penetrating Radar
VIY5-300 Ground Penetrating Radar
Description
Specification
Components

The VIY5-300 Ground Penetrating Radar (GPR) is used for location and analysis of the nature of underground objects using electromagnetic pulse radiation, up to 8 meters depth.
The VIY5-300 GPR is suitable for searching of both metal and dielectric objects (geological structures, pipes, voids, building constructions etc.).

Basic applications:

  • Search for pipes and communication objects;
  • Examination of engineering construction (building basement, dams, etc.);
  • Investigation of man-caused accident areas;
  • Search for subsurface objects (voids, cracks, heterogeneous inclusions);
  • Search for underground constructions (tunnels, sewers and etc.);
  • Search for sources of leakage from pipelines by indirect signs (excessive moisture).

Features:

  • Real time signal pre-processing (Online filtering)
  • Automatic-Calibrated online filters
  • Wide range of post processing filters
  • Increased dynamic range due to digital traces-stacking
  • High signal-to-noise ration due to innovative Telbin technology
  • Automatic recognition of connected antenna
  • Antenna to laptop connection through WiFi or USB
  • All GPR components (antennas system, electronic modules, battery, etc.) are assembled in a single case
  • No additional Control Unit. Any Windows-based computer (laptop) can be used for working
  • Direct connecting of Measuring wheel and GPS to antenna unit
  • Antenna unit can be either mounted on the Handcart Cart-46 or towed along the ground by transport belt
  • Bidirectional odometer. User can perform sounding in both directions: back and forth
  • Low power consumption: not less than 8 hours of working session before next charging
  • Sealed lead acid batteries permitted for air-carrying
  • Non- inflatable solid wheels of the Handcart
  • Durable antenna body made of fiberglass plastic
  • Replaceable bottom protector to use antenna without the Handcart
  • Each antenna set is ready to use without purchasing any additional accessories\



GPR profile pipe2.brm
The GPR profile recorded during this video can be downloaded from the link.





GPR
profile pipe7.brm
The GPR profile recorded during this video can be downloaded from the link.

To work with georadar and georadar data, download the free VIY software package.
  • Antenna frequency: 300 MHz
  • Analogue-to-Digital Converter range: 18 bit
  • Dynamic range: not less than 135 dB
  • Data acquisition rate: up to 150 traces per second
  • Survey window: 66, 100, 133, 166 ns
  • Maximum number of samples per trace: 1 000
  • Trace stacking number: up to 300
  • Depth of sounding: up to 8 m (determined by soil properties)
  • Spatial resolution: better than 0.3 m
  • Trigger mode: single, internal, external
  • File size of a single profile: up to 1 000 000 traces
  • Interface: USB2 or WiFi
  • Dimensions (L x W x H): 550x310x170 mm
  • Weight of antenna: 8.0 kg
  • Weight antenna with cart: 20.5 kg
  • Operating temperature range: -20°C to 40°C
  • Continuous operation time: not less than 8 hours

The VIY5-300 GPR set includes:

Antenna unit of VIY5-300 ground penetrating radarAntenna unit
Antenna unit is placed in a durable fiberglass housing with build in battery.
The antenna unit has sockets to connect:

  • Data cable
  • Masuring wheel and/or GPS receiver

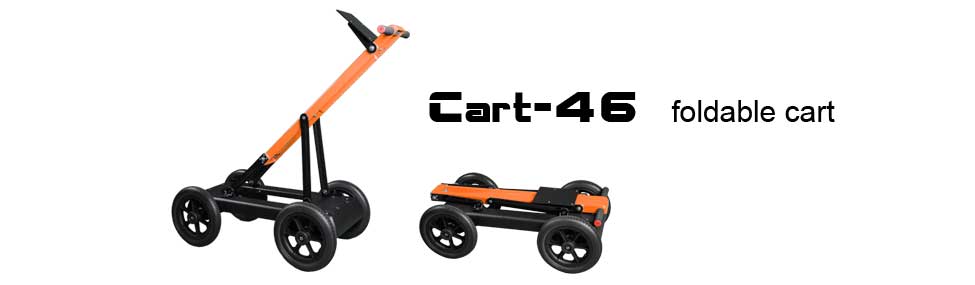

Handcart Cart-46Foldable handcart Cart-46 for transportation of VIY5-37 ground penetrating radar
Foldable handcart allows a single operator to carry out fast and easy survey of large areas.
Main features:

  • Durable and reliable construction
  • Quick deployment
  • 12 inch wheels
  • Weight - 12.7 kg (with battery installed)
  • Built-in odometer
  • Built-in battery
  • Very compact when folded

VO-22 Measuring Wheel
VO-22 is a bidirectional odometer (measuring wheel) that measures traveled distance in both directions. Odometer can be mounted to the body of antenna unit and electrically connected to the antenna by special connector.

  • Calibration is not required;
  • Dust and mud protection;
  • Mounting to an antenna unit without any extra tool;

Battery charger for VIY3-300 ground penetrating radarBattery Charger
Reliable, sealed charger for charging a built-in battery.







Data cable to connect VIY3-300 antenna unit and laptopData Cable
The cable that connects antenna unit to USB port of your computer







Transportation handle for VIY5-37 antenna unit

Telescopic Pole

The pole for transportation of antenna forward and backward. Can be easily mounted to antenna.








User's Manual

English version of User manual for VIY3 series of ground penetrating radars












Backpack Backpack for accessories of VIY3-300 ground penetrating radar
Durable and comfortable backpack for transportation of all accessories for GPR. It has many compartments, including protected compartment for laptop.

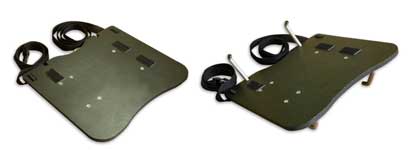

portable shelf for laptop for VIY3-300 ground penetrating radar operator's



Portable shelf for notebook
Foldable shelf was designed to be attached to the backpack and to let a single operator carry out comfortable work with a laptop.

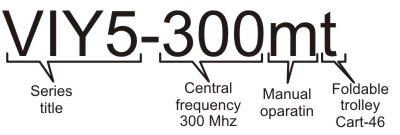

Information for ordering VIY5-300 GPR





Optional available

WiFi connection
Build in WiFi unit in antenna.

Robust version ofVIY5-300mt
Version with extended temperature range, heavy-duty case, IP 67 compliant.

GPS receiverGPS receiver for VIY5 Ground Penetrating Radar
GPS receiver can be installed onto Cart-46 handcart and connected directly to VIY5-600, VIY5-300 or VIY5-37 antenna.










GPS cable
Cable for connecting external GPS receiver by RS232



Transport Case Transportation case for VIY5 GPR
A special case that was made for transportation of
VIY5-300, VIY5-600 or VIY5-37 GPR together with handcart.
