Planner Program

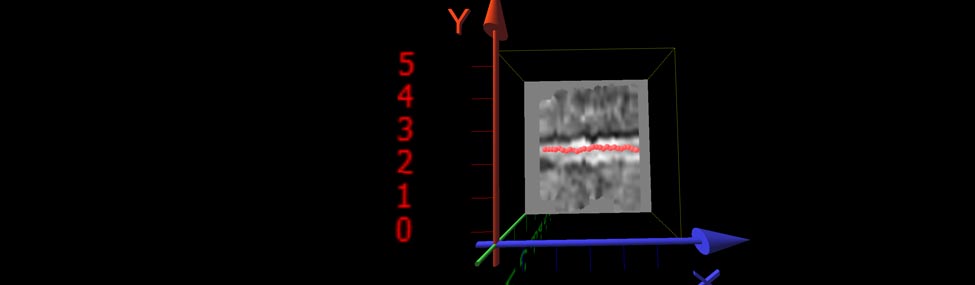

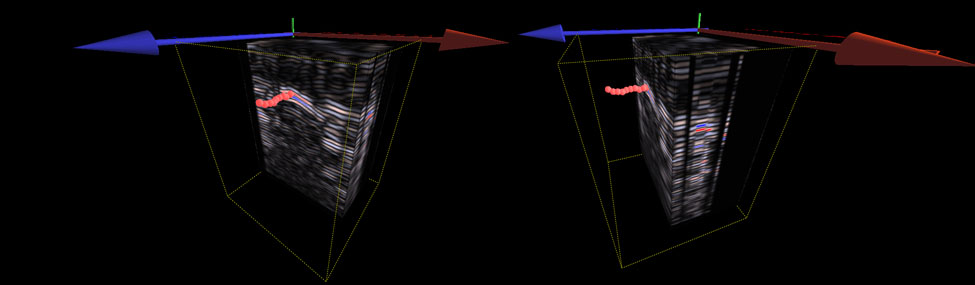

3D3 3D1 3D view with using of GPS 3D2
3D3

Planner program is designed to display all measured GPR data and all found items on the location plan and to manage the sounding process.

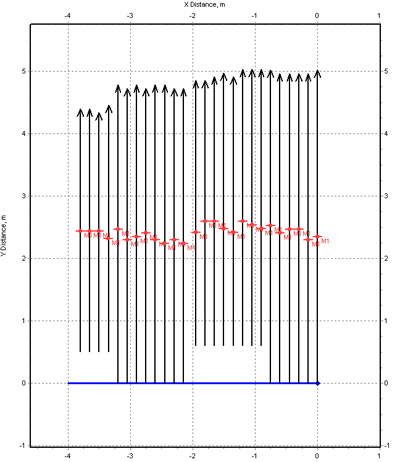

Many profiles in Planner program

Example of GPR profiles displayed in Planner.

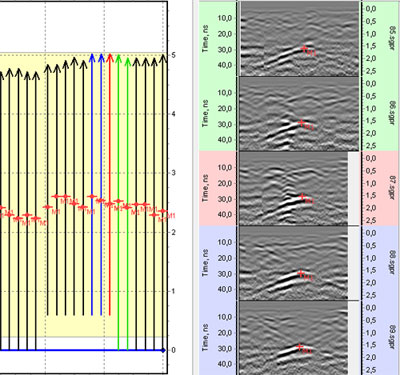

Displayed profiles on plan and original GPR profiles in Planner program

Working with GPS

Example of Planner program with using of GPS



Export a project data to .kmz file and therefore it can be opened with Google Earth program.



Example of export of Planner project to Google Earth



Details of export of Planner project in Google Earth



Convenient view and identification of GPR profiles. Marking on the GPR profile and on the view area.

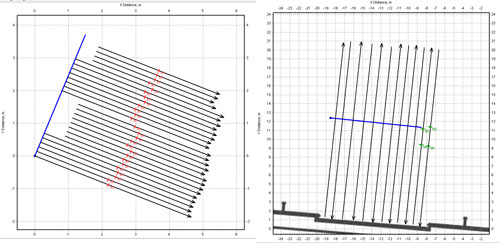

Rotating of profiles in Planner program

Arbitrary orientation and position of the base line.

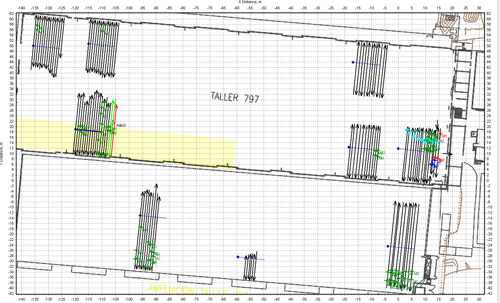

Orientation of base line in Planner program

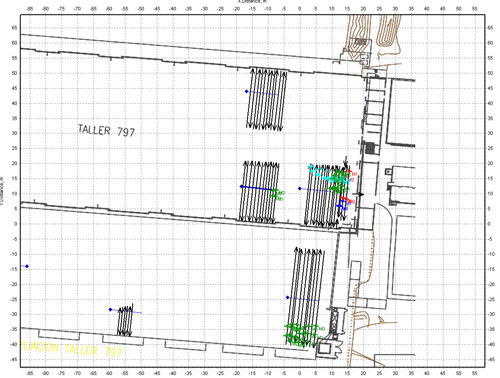

Unlimited number of GPR profiles in the site. Unlimited number of sites in the project.

Many sites in Planner program

Area plan. Using an image as a background layer in the project.

Using background image as map for Planner program

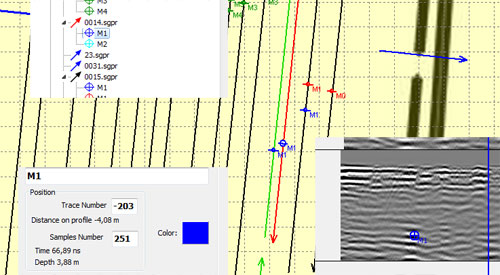

Convenient editing of object's markers.

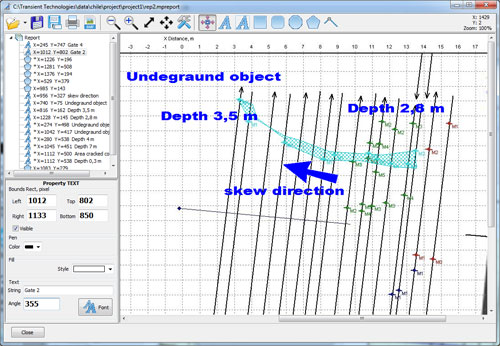

Report editing in Planner program

Report preparation.

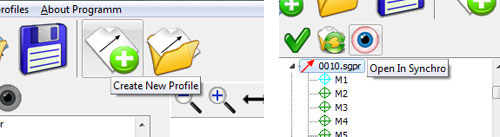

Report preparation in Planner program

Easy integration with Synchro3 program during sounding and data processing.

Data export to AutoCad.

3D representation can be made directly from Planner.

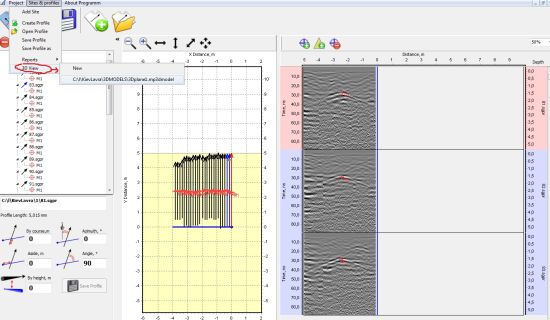

preparation before 3D representation in Planner program

3D interpolation can be built by any profile section in any project plane (Z,Y,Z).

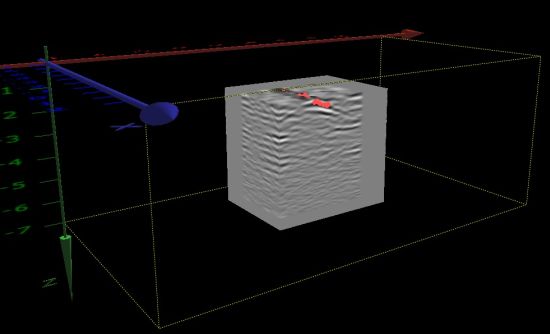

3D view in Planner program

3D interpolation using GPS

Example of GPS usage with VIY3 GPR

 Reports can be created based on project's plan or 3D view.

Please download the last version of VIY software package (ver.3.12.5.1) here
