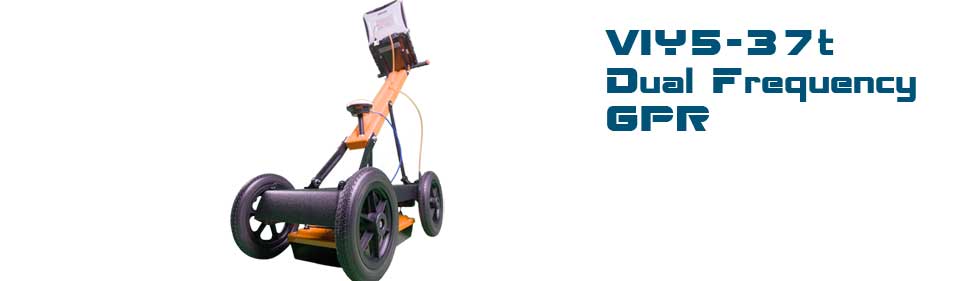

VIY5-37 Dual-Frequency Ground Penetrating Radar

Description

Specification

Components

VIY5-37 Ground Penetrating Radar (GPR) has Dual Frequency antenna with central frequencies of 300 MHz and 700 MHz
This GPR combines the best features from both antennas: big depth penetrating and high resolution.

VIY5-37 GPR allows a user to reach depth of up to 8 meters in certain conditions.

User can receive two GPR profiles at the same time from both antennas. You can process any or both of profiles in the same way or differently.

Basic applications:

Civil engineering
Archaeology
Forensics
Damage prevention

Features:

Real time signal pre-processing (Online filtering)
Automatic-Calibrated online filters
Wide range of post processing filters
Increased dynamic range due to digital traces-stacking
High signal-to-noise ration due to innovative Telbin technology
Automatic recognition of connected antenna
Antenna to laptop connection through USB
All GPR components (antennas system, electronic boards, etc.) are assembled in a single case
No additional Control Unit. Any Windows-based computer (laptop) can be used to work with VIY3 GPR
Direct connecting of Measuring wheel and GPS to antenna unit
Antenna unit can be either mounted on the Handcart Cart-46 or pulled/towed with transportation pole
VO-22. Bidirectional odometer
New Cart-46 - foldable GPR handcart with bi-directional odometer
Low power consumption: not less than 8 hours of working session before next charging
Sealed lead acid batteries permitted for air-carrying
Non- inflatable solid wheels of the Handcart
Durable antenna body made of fiberglass plastic
Replaceable bottom protector to use antenna without the Handcart
Each antenna set is ready to use without purchasing any additional accessories

Antenna frequencies: 300MHz, 700MHz
Analogue-to-Digital Converter range: 18 bit
Dynamic range: not less than 135 dB
Data acquisition rate: up to 120 traces per second
Survey window: 30...75 nsec / 66...166 nsec
Maximum number of samples per trace: 1 000
Trace stacking number: up to 300
Depth of sounding: up to 8.0 m (determined by soil properties)
Spatial resolution: <0.12 m (700 MHz) / <0.3 m (300 MHz)
Trigger mode: single, internal, external
File size of a single profile: up to 1 000 000 traces
Interface: USB2
Build-in inclinometer
Dimensions (L x W x H): 940x520x350 mm
Weight: 20.5 kg (with Cart)
Operating temperature range: -20°C to 40°C
Environmental rating: IP65
Continuous operation time: not less than 8 hours

The VIY5-37 GPR set includes:

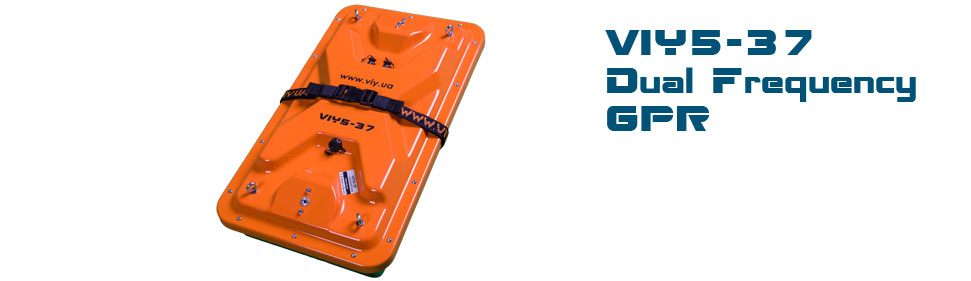

Antenna unit
Antenna unit is placed in a durable fiberglass housing.
The antenna unit has sockets to connect:

Data cable
Measuring wheel and/or GPS receiver

Handcart Cart-46
Foldable handcart allows a single operator to carry out fast and easy survey of large areas.
Main features:

Durable and reliable construction
Quick deployment
12 inch wheels
Weight - 12.7 kg (with battery installed)
Built-in odometer
Built-in battery
Very compact when folded

VO-22 Measuring Wheel
VO-22 is a bidirectional odometer (measuring wheel) that measures traveled distance in both directions. Odometer can be mounted to the body of antenna unit and electrically connected to the antenna by special connector.

Calibration is not required;
Dust and mud protection;
Mounting to an antenna unit without any extra tool;

Battery Charger
Reliable, sealed charger for charging a built-in battery.

Data Cable
The cable that connects antenna unit to USB port of your computer

Transportation handle for VIY5-37 antenna unit

Telescopic Pole

The pole for transportation of antenna forward and backward. Can be easily mounted to antenna.

User's Manual

English version of User manual for VIY3 series of ground penetrating radars

Backpack Backpack for accessories of VIY3-300 ground penetrating radar
Durable and comfortable backpack for transportation of all accessories for GPR. It has many compartments, including protected compartment for laptop.

Portable shelf for notebook
Foldable shelf was designed to be attached to the backpack and to let a single operator carry out comfortable work with a laptop.

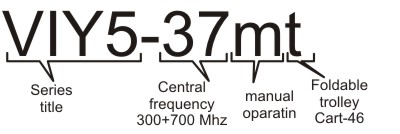

Information for ordering VIY5-37 GPR
