VIY5-900 Ground Penetrating Radar

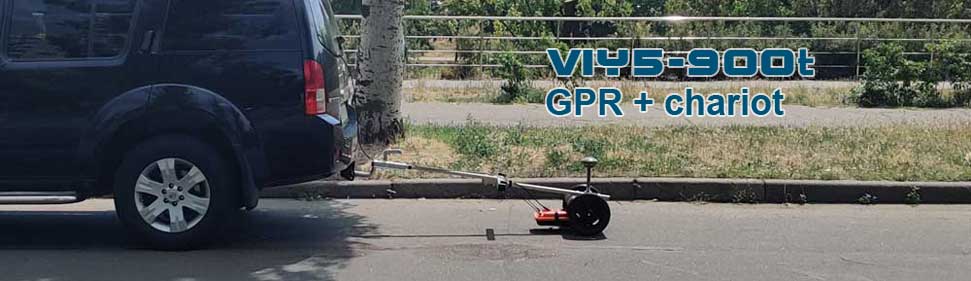

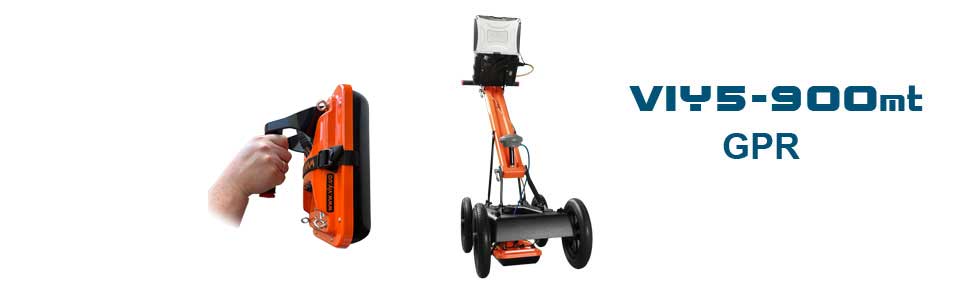

VIY5-900 GPR 1 VIY5-900 GPR 2 VIY5-900 GPR 3 VIY5-900 GPR 4 VIY5-900 GPR 5
VIY5-900 GPR 2
Description
Specification
Components

The VIY5-900 GPR is suitable for bridge deck inspection and searching of both metallic and dielectric objects (utilities, voids, fondation constructions, etc.).



Basic applications:

  • Bridge deck inspection;
  • Utilities;
  • Examination of engineering construction (building walls and fondations, etc);
  • Search for reinforcement rods in building constructions;
  • Search for hidden and immured objects.


Features:

  • Real time signal pre-processing (Online filtering)
  • Auto-calibrated online filters
  • Wide range of post processing tools
  • Increased dynamic range due to digital traces-stacking
  • Innovative Telbin technology to get high signal-to-noise ratio
  • Connection to laptop: USB
  • Direct connection of Measuring wheel and GPS to antenna
  • No additional Control Unit. Any Windows-based laptop can be used for working
  • Antenna mounting: on Handcart Cart-46 or antenna+odometer
  • New handcart design: fast and easy system deployment
  • Handcart laptop shelf angle: any convenient
  • Antenna case: IP65 compliant
  • New IP67 Swiss-made connectors
  • Sealed Lead Acid Battery
  • Low power consumption: > 8 hours of working on a single charge
  • Antenna frequencies: 900MHz
  • Analogue-to-Digital Converter range: 18 bit
  • Dynamic range: not less than 135 dB
  • Data acquisition rate: up to 150 traces per second
  • Survey window: 23.6, 34, 45.3, 56.6  nsec
  • Maximum number of samples per trace: 1 000
  • Trace stacking number: up to 300
  • Depth of sounding: up to 2 m (determined by soil properties)
  • Spatial resolution: <0.09 m
  • Trigger mode: single, internal, external
  • File size of a single profile: up to 1 000 000 traces
  • Interface: USB2 or Wi-Fi
  • Built-in inclinometer
  • Dimensions (L x W x H): 305x210x95 mm
  • Weight of antenna 1,8 kg
  • Weight antenna with cart : 15 kg
  • Operating temperature range: -20°C to 40°C
  • Environmental rating: IP65
  • Continuous operation time: not less than 8 hours

The VIY5-900 GPR set includes:

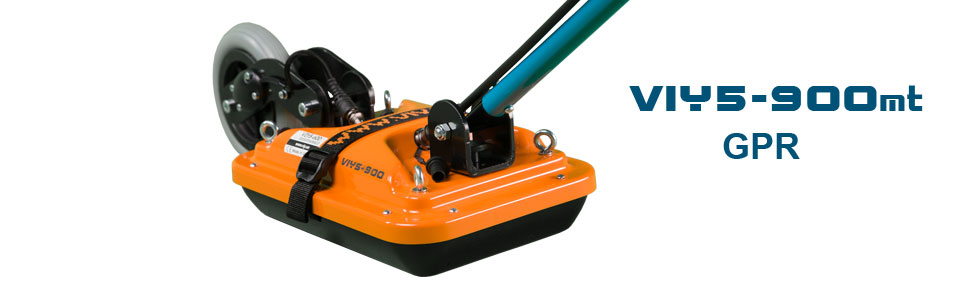

Antenna unit of VIY5-900 ground penetrating radarAntenna unit
Antenna unit is placed in a durable fiberglass housing.
The antenna unit has sockets to connect:

  • Data cable
  • Measuring wheel and/or GPS receiver

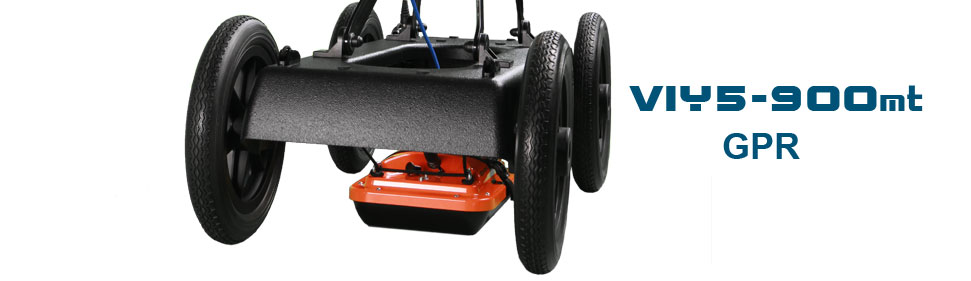

Foldable handcart Cart-46 for transportation of VIY5-900 ground penetrating radarHandcart Cart-46
Foldable handcart allows a single operator to carry out fast and easy survey of large areas.
Main features:

  • Durable and reliable construction
  • Quick deployment
  • 12 inch wheels
  • Weight - 12.7 kg (with battery installed)
  • Built-in odometer
  • Built-in battery
  • Very compact when folded



Battery CaseBattery case for the battery of VIY5-900 ground penetrating radar
Battery case can be placed in operator's backpack while working without handcart.
The battery case has sockets to connect DP and Data cables.





VO-22 Measuring wheel of VIY5-600 ground penetrating radarVO-22 Measuring Wheel
VO-22 is a bidirectional odometer (measuring wheel) that measures traveled distance in both directions. Odometer can be mounted to the body of antenna unit and electrically connected to the antenna by special connector.

  • Calibration is not required;
  • Dust and mud protection;
  • Mounting to an antenna unit without any extra tool;

Battery charger for VIY3-300 ground penetrating radarBattery Charger
Reliable, sealed charger for charging a built-in battery.







Data cable to connect VIY3-300 antenna unit and laptopData Cable
The cable that connects antenna unit to USB port of your computer







Transportation handle for VIY5-37 antenna unit

Telescopic Pole

The pole for transportation of antenna forward and backward. Can be easyly mounten to antenna.








User's Manual

English version of User manual for VIY3 series of ground penetrating radars












Backpack Backpack for accessories of VIY3-300 ground penetrating radar
Durable and comfortable backpack for transportation of all accessories for GPR. It has many compartments, including protected compartment for laptop.














portable shelf for laptop for VIY3-300 ground penetrating radar operator's

Portable shelf for notebook

Foldable shelf was designed to be attached to the backpack and to let a single operator carry out comfortable work with a laptop.

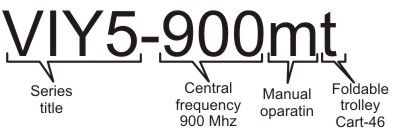

Information for ordering VIY5-900 GPR

Optional available

Robust version ofVIY5-900mt
Version with extended temperature range, heavy-duty case, IP 67 compliant.

GPS receiverGPS receiver for VIY5 Ground Penetrating Radar
GPS receiver can be installed onto Cart-46 handcart and connected directly to VIY5-900, VIY5-600, VIY5-300 or VIY5-37 antenna.










GPS cable
Cable for connecting external GPS receiver by RS232



Transport Case Transportation case for VIY5 GPR
A special case that was made for transportation of
VIY5-900, VIY5-300, VIY5-600 or VIY5-37 GPR together with handcart.
