Depending on the georadar set, sounding can be carried out
  • moving the georadar with a telescopic handle - "manual" mode
  • install the georadar on a handcart - "cart" mode
  • when towing a georadar behind a vehicle - "trailer" mode
Most VIY georadar can be used in all these ways, except for the lowest frequency VIY5-070 and VIY5-125, as well as the VIY5-1500 concrete scanner. These GPRs can only be used in manual mode.

"Manual" mode

An odometer and a telescopic pole are attached to the GPR antenna. It is don't need any extra tools to fixing pole and odometer to GPR . It is made manually.
VIY5-37m GPR with odometer
VIY5-37m with odometer VO-22 and telescopic pole

VIY5-600m GPR with odometer
VIY5-600 with odomener VO-12  and telescopic pole.

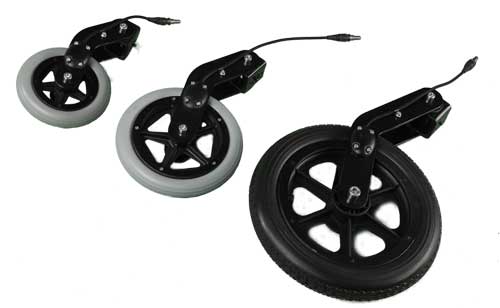

For different models of georadar, there are different models of odometers


6'' VO-12,  8'' VO-22 and 12'' VO-36  bi-directional odometers.,

VIY5-1500 GPR has own  buil-in odometer
VIY5-1500 GPR has own build-in odometer.

"Cart" mode.

Sturdy and reliable, the Cart-46 foldable trolley allows you to work on various surfaces and rough terrain.
Cart-36 is a four-wheel foldable GPR trolley. It is compatible with VIY5900, VIY5-600, VIY5-300, VIY5-37.

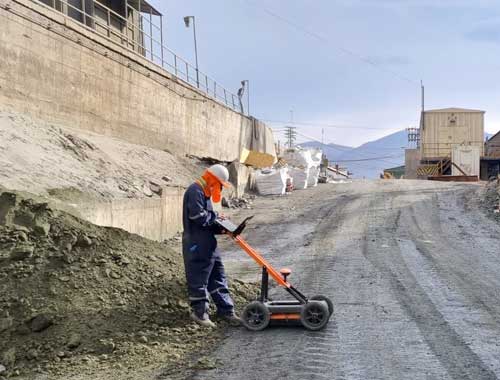

Cart-46 on industrial area
Cart-46 with GPR on industrial area

Cart-46 on rough terrain
Cart-46 on rough terrain


Cart-46 can be folded/unfolded with attached GPR antenna.  Removing VIY5 GPR form the transport case

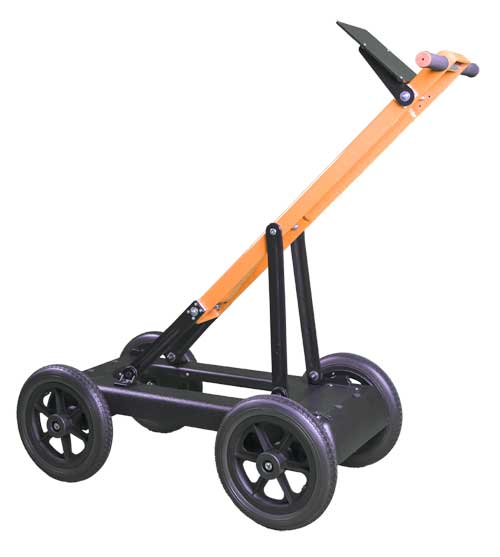

Cart-46 in working state

 Folded state of Cart-46
Cart-46 in folded state


"Trailler" mode

Single axle trailer Cart-6 made from strong fiberglass, one of the wheels is a bi-directional odometer, a bolt for the GPS receiver pole attachment..

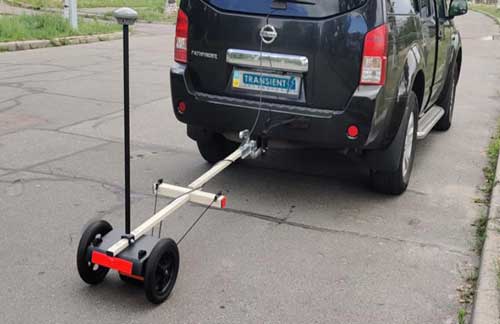

 Cart-6 trailer for GPR
Cart-6 is compatible with VIY5900, VIY5-600, VIY5-300, VIY5-37


Cart-6 assembled/disassembled
                         Cart-6 working state                                         Cart-6 transport state

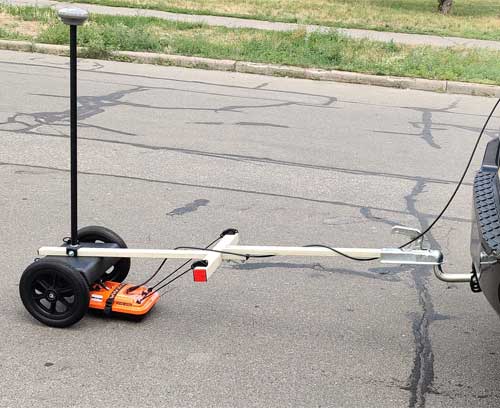

Cart-6 with VIY5-900
Cart-6 with VIY5-900 GPR

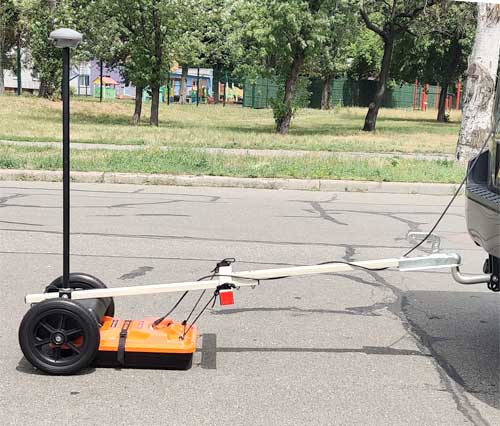

Cart-6 with VIY5-37

Cart-6 with double frequency VIY5-37 GPR
